Specifications
Tube voltage 60KV
Tube current 2.0 Ma
Exposure time 0.1-2.0 s
Frequency 30KHz
Rate power 120VA
Distance from the skin to cone 130mm
Tube fouse 0.4mm
Battery DC2200mAh
Charger input voltage AC100V-240V
Output voltage DC14.8-16.8V
Gross weight 4.8kg
Package size 365mm×330mm×265mm

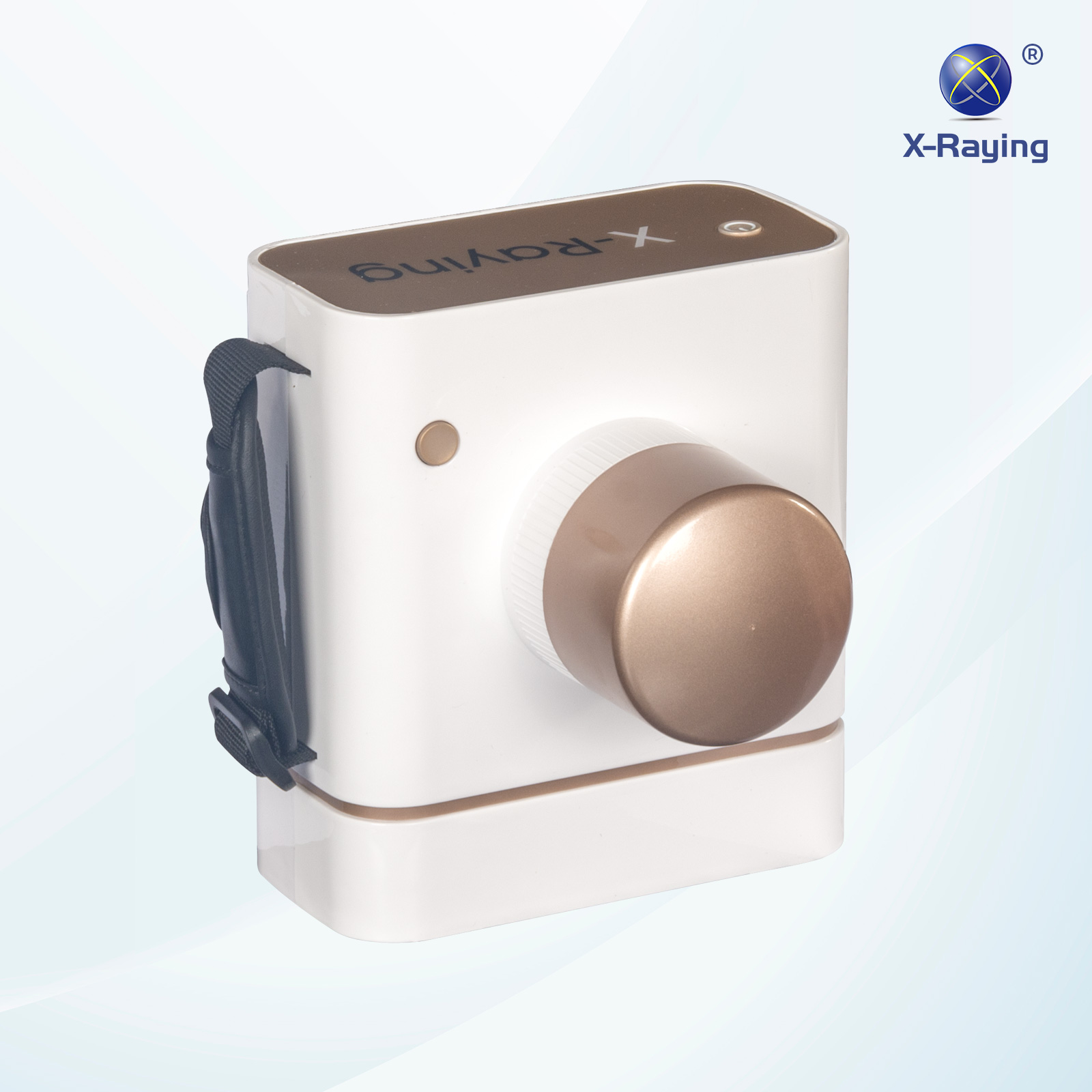

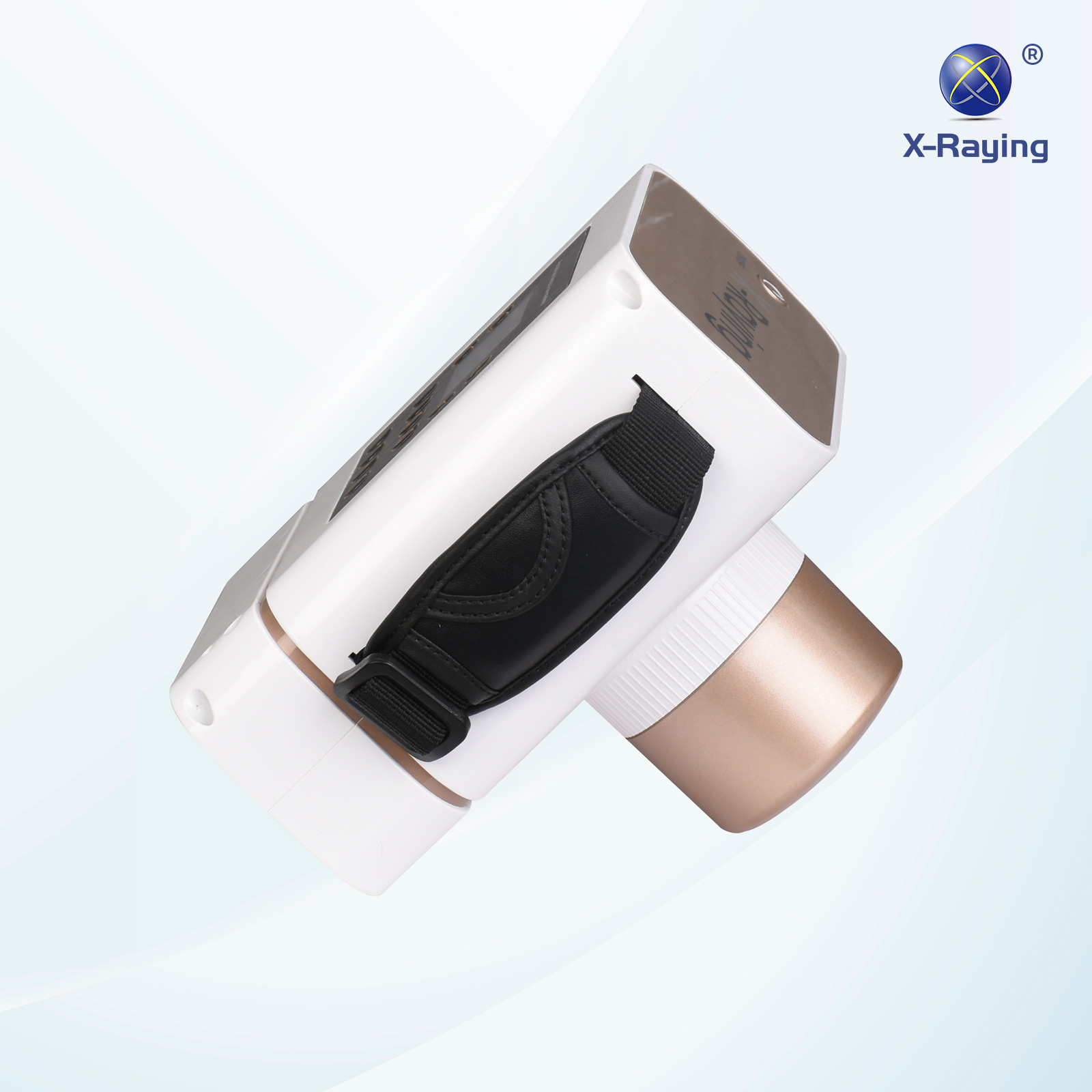

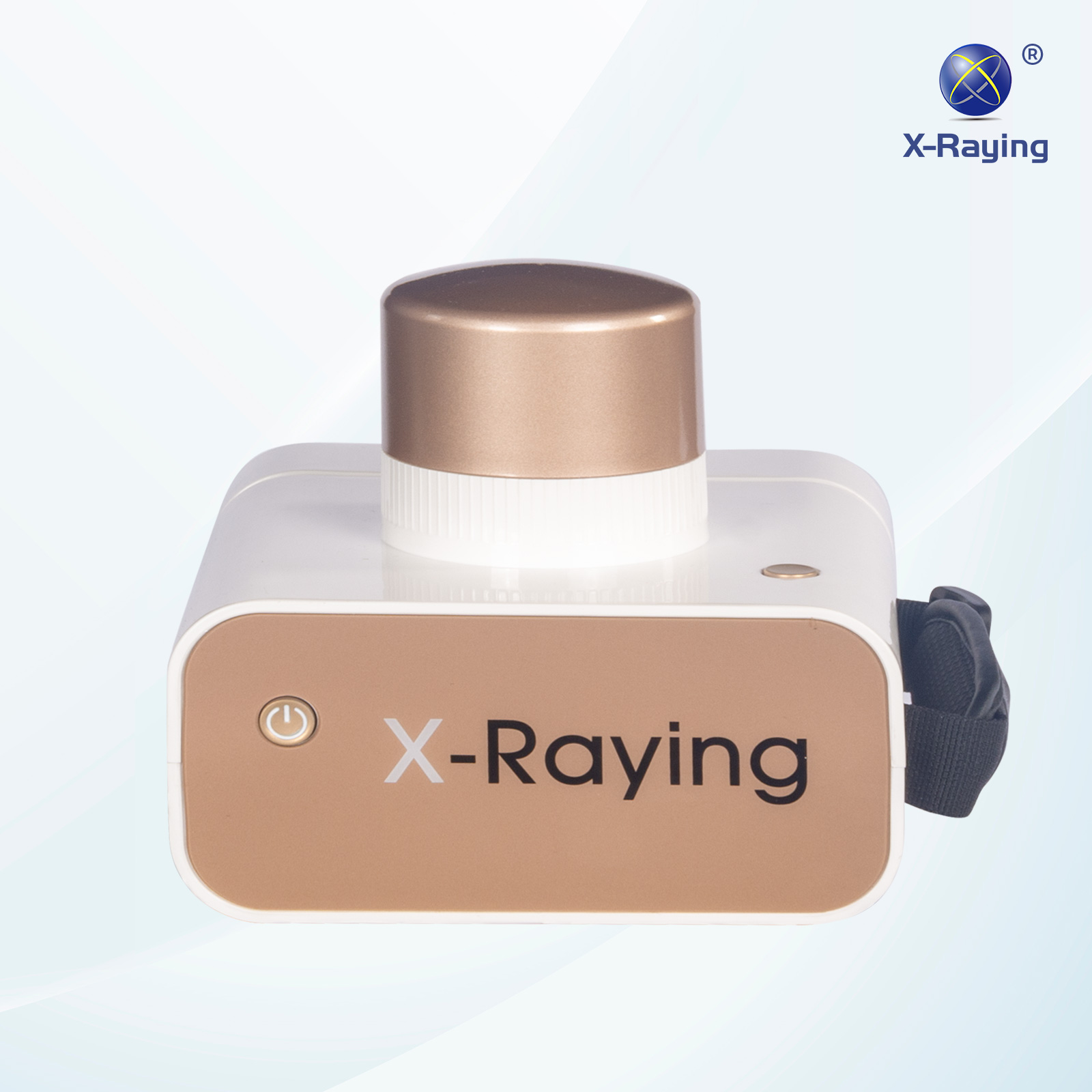

X-ray Equipment

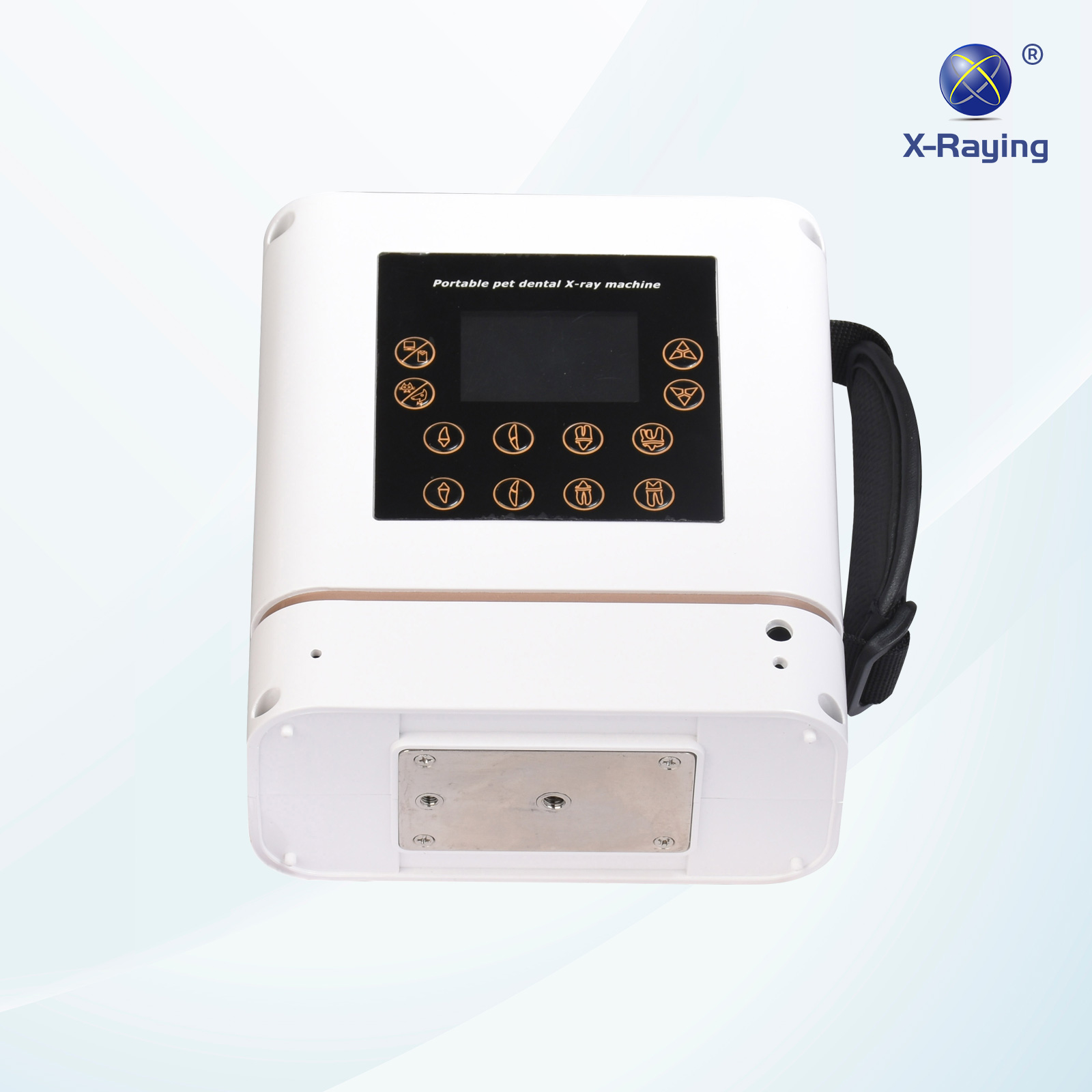

Easier operation with the visualized human-machine interaction interface.
An Microcomputer IC controlled program with the exclusive pet parameters design enables a “one-click shoot” set up
The Internal full charged high rate power lithium battery permits 200 shoots, which greatly facilitates the treatment process.
DR System
CMOS APS Master control chip enables a 3-seconds image formation
The formed images’ line pair resolution and pixels are high, which make them sharper
A powerful Image enhancement algorithm and one-button processing function: just one click to diagnose the root canal, the periodontal disease, the caries, or the dental crown.
| Chip Type | CMOS APS |
| Scintillator | GOS/Csl |
| Dimension | 27.5*38.5mm 32.3*44.3mm |
| Active Area | 22.5*30mm 27*36mm |
| Pixel size | 18.5µm |
| Image Pixel | 1.9M(1600＊1200) 2.7M(1920＊1440) |
| Resolution
(lp/mm) |
Theoretical：27lp/mm
Measured：12-14lp/mm(GOS) 16-20lp/mm(Csl) |
| Operation | Windows 2000/Win7/Win8/Win10(32bit＆64bit) |
| Additional | TWAIN Driver |
